Custom Lithium ion Battery Pack

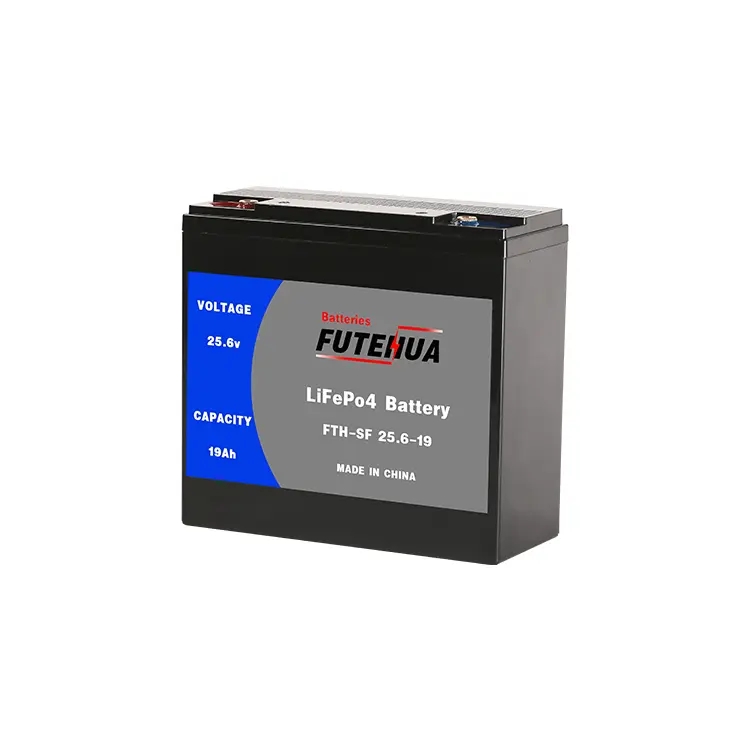

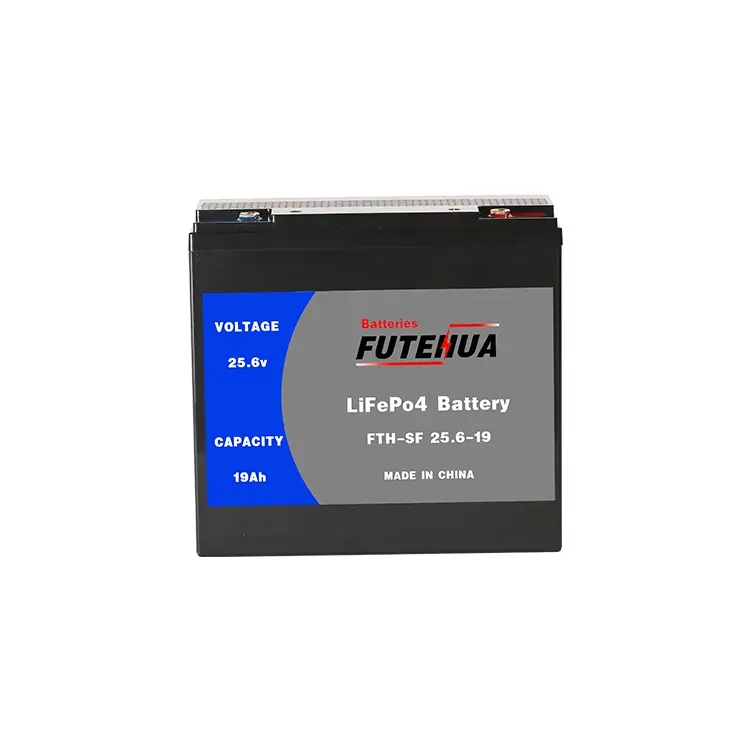

24V 25.6V 19AH Lithium Iron Phosphate LiFePO4 Battery

Product Detail

Introduction about 25.6V 19AH LiFePO4 battery

The excellent discharge performance of our rechargeable batteries: the battery has low internal resistance and high working voltage discharge characteristics, so it is widely used. Long storage period: the battery has a long storage life and few restrictions, and can be charged normally after long-term storage. Adaptability: It can be applied to higher temperature environment. We provide different capacities for 25.6V lithium ion LiFePO4 battery ,like 8ah,10ah and 19ah.It is applied for electric vehicles,scooters,golf cart, emergency lighting ,solar energy storage,solar street lighting ,UPS backup power,telecommunication devices ,robotics,robots,medical devices ,drones,power supply,power bank,security system ,CCTV camera ,etc.We also provide OEM/ODM service for our customers .

Technical Parameters

25.6V Lithium-ion LiFePO4 Batteries

Model

Nominal Voltage
(V)

Capacity
(Ah)

Charge current

Discharge current

Charge Temperature Range

Working Temperature
Range

Dimension

Weight
(kg)

Length
(mm)

Width
(mm)

Height
(mm)

FTH-SF 25.6-8

25.6

8

5A

8A

0℃-+55℃

-30℃~+70℃

151

99

99

≥1.49

FTH-SF 25.6-10.5

25.6

10.5

5A

10A

0℃-+55℃

-30℃~+70℃

181

77

175

≥2.68

FTH-SF 25.6-19

25.6

19

5A

10A

0℃-+55℃

-30℃~+70℃

223

95

195

≥3.51

Product details

1
4
5

Application

application

Lithium Iron phosphate battery Advantage

BMS system and balance circuit inside

Low failure rate

Long cycle life

Better stability

Low internal resistance, low self-consumption

safe and stable

Advantage

High energy density - potential for yet higher capacities.

Does not need prolonged priming when new. One regular charge is all that's needed.

Relatively low self-discharge - self-discharge is less than half that of nickel-based batteries.

Low Maintenance - no periodic discharge is needed; there is no memory.

Specialty cells can provide very high current to applications such as power tools.

*
*
