Custom Lithium ion Battery Pack

3.2v 206AH Prismatic Lithium Iron Phosphate Battery Cell

Product Detail

Technical Parameters

 Item

 Spec.

Remark
 ExteriorNo breakage, scratch, deformation,


stain, electrolyte leakage, etc.

N/A
Size54mm*173mm*200mm/
Rated current0.5C103A
Nominal capacity206AhNominal charge and discharge
Nominal voltage3.2VN/A
Weight4000g±120gN/A
Maximum charging voltage3.65V0℃≤T≤55℃
Minimum discharge voltage




2.5V0℃<T≤60℃
2.0V-20℃≤T≤0℃
Energy density




≥164Wh/kgMass energy density
≥350Wh/LVolume energy density
Rated power329W/
AC internal resistance<0.3mΩNew cell

Product details

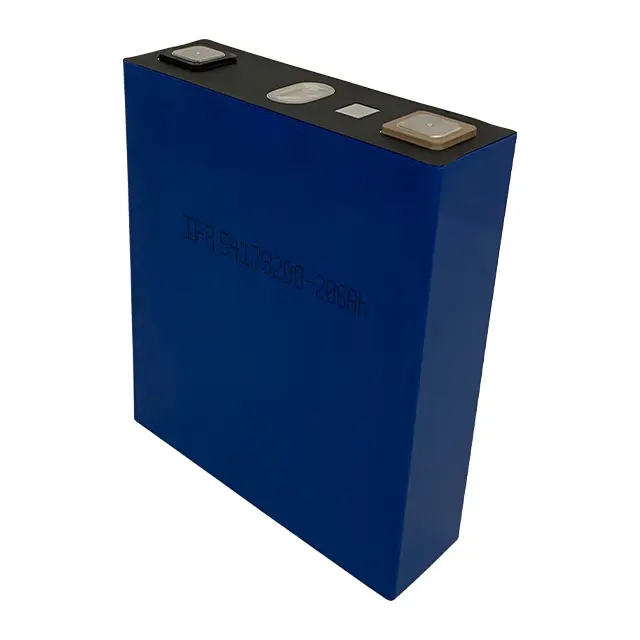

3.2v206Ah-1

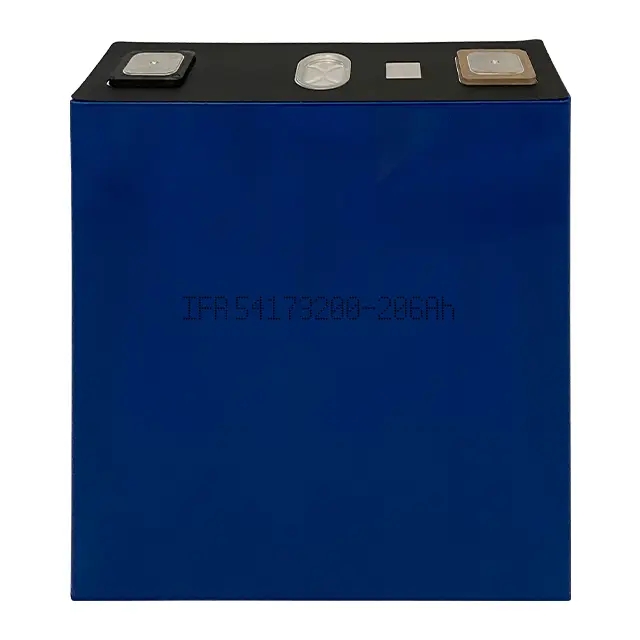

3.2v206Ah-2
3.2v206Ah-3

Application

The battery can be combined arbitrarily。They are applied for golf cart,electric vehicles ,forklift ,portable power station ,UPS,power supply,electric scooters ,marines ,boats ,etc.

dasd

Safety and Prohibition

Before use, the specifications should be read in detail.

*It is forbidden to invade the cell into water or other conductive liquids.

*It is forbidden to put the cell into the fire or expose them to the temperature outside the working        range for a long time. The temperature  of  the  cell  should  not  exceed  55℃.

* If  the  temperature  of  the  cell exceeds 55℃, the operation of the cell should be stopped.

*Connect the positive and negative poles of the cell strictly according to the label and instructions, and prohibit reverse charging.

*When the electrolyte leaks, skin and eyes should be avoided contact with the electrolyte. In case of contact, a large amount of  clean  water  should  be  used  to  clean  the  contact  area  and  seek  help from the doctor.

*It is forbidden for any person or animal to swallow any part or substance contained in the cell.

*Do your best to protect the cell from mechanical vibration, collision and pressure  impact,  otherwise the inner of the cell may be short-circuited, resulting in high temperature or fire.

*It is strictly forbidden to make the cell bear excessive mechanical impact.

*It is strictly forbidden to use cell with extrusion, drop, short circuit, leakage and other abnormal  problems.

*It is strictly forbidden that the outer shells of the cells contact directly  or  connect  together  through conductors to form a path in the course of use.

*The cell should be stored and used in places far away from static electricity.

*In the course of using, charging and discharging, or storage, it should be stopped immediately and handled accordingly when found that the cell changes rapidly in heat, emits odor, discoloration, deformation or other reactions.

Why choose us

Futehua focuses on providing clients with safe and green energy solution. We are known for excellent quality, stability and reliability. By helping our clients to challenge and overcome their limitations, we are committed to becoming the most popular and respected lithium-ion batteries supplier in the world. Our factory has a professional full set of R&D team,and has strength to provide clients with the ability to customize and manufacture batteries in different application fields.Our factory’s lithium-ion battery power supply is widely used in military, artificial intelligence, 5G, solar energy storage, electrocar , emergency lighting, portable power station, security monitoring, medical and other fields due to its reliability and high performance. We have the responsibility to do better, pursue excellence, breathe with clients, and enjoy everything the earth gives us.


*
*
