1000W Battery Generators LFP Battery Power Station

Request A Quote

< >

Product Detail

Technical Parameters

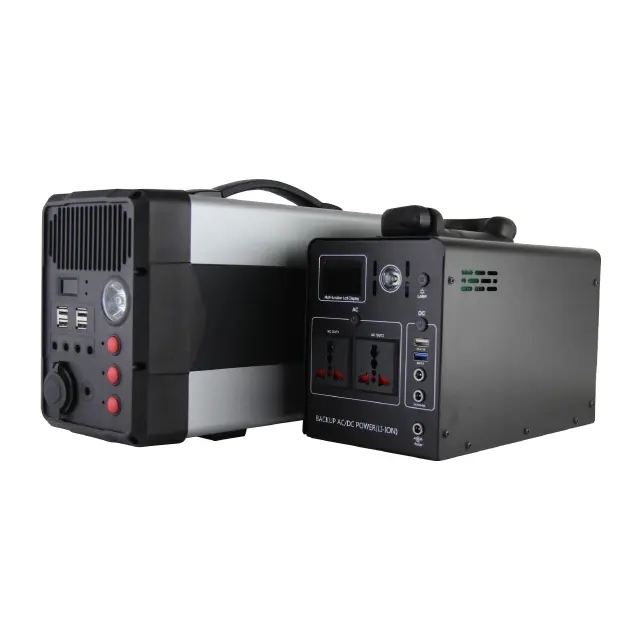

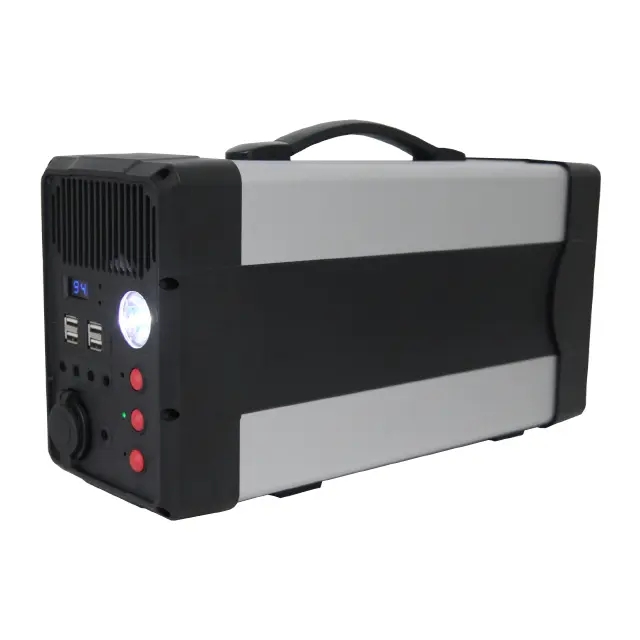

Portable Power Station 1000W
Battery	LiFePO4 DC12.8V-54AH 691.2WH
AC output	Output power: continuous 1000W peak power 2000W
	Output voltage: AC220V 50Hz / AC110V 60Hz, pure sine wave
	Overload power: >1000W, the indicator light is red, disconnect the load, restart and recover
	Indicator light: fault red, normal green
DC output	USB：5V-3A，double connectors，QC3.0double connectors
	DC12V-3A*4, connection：DC5.5-2.1
	DC24V-2A*1, connection：DC5.5-2.1
	DC12V-10A*1, connection：Cigarette lighter female seat
	Indicator light: fault red, normal green
LED light	1W power, 3 lighting modes: 100%, 50%, burst flash
AC charging	Input Voltage:AC 100V~240V 50/60Hz
	Charger Voltage：DC14.6V，current:12A
	Indicator light: charging red, full green + display power 100%
	Power failure switching time≤10ms
Solar panel charging	Controller charging parameters: DC14.6V-12A, matching photovoltaic panel voltage: DC18V
Solar panel charging	Indicator light: charging red, full green
Charging time	~8 hours
Weight	~10kg
Size	390mm198mm139mm

Application

The characteristics of Lithium Iron Phosphate Battery and Lithium Ion Battery Li(NiCoMn)

Features of lithium iron phosphate battery:

Lithium iron phosphate battery is a kind of using lithium iron phosphate (LiFePO4) as the anode material and graphite as the negative cathode material . The nominal voltage of the single unit is 3.2V, and the charging cut-off voltage is 3.6V~3.65V.

The biggest advantages of lithium Iron Phosphate battery is high safety performance and longer cycle life. Under standard charging conditions,the usage life can reach more than 5-10 years, the cycle life can be more than 2000 times.The ignition point of lithium iron phosphate is higher, autoignition temperature is 600℃,so not easy to burn, not easy to explode.

Features of Lithium Ion Battery Li(NiCoMn):

Lithium Ion Battery Li(NiCoMn): it uses three transition metal oxides of nickel, cobalt and manganese as anode material, and graphite as the negative cathode material. The nominal voltage of the single unit is 3.7V, and the charging cut-off voltage is 4.2V~4.25V.

The biggest advantages of Lithium Ion Battery Li(NiCoMn) is higher energy density and higher voltage flat.The cycle life can be more than 800 times.The ignition point can be lower than Lithium iron phosphate battery.So easy to burn, easy to explode.
