Custom Lithium ion Battery Pack

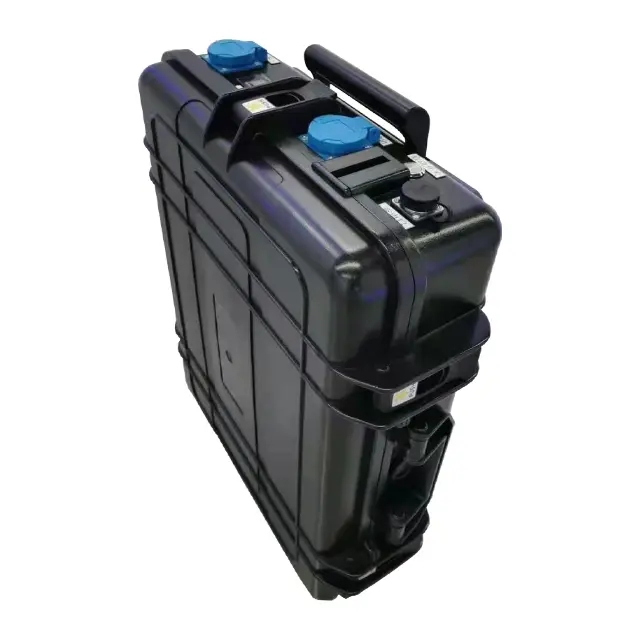

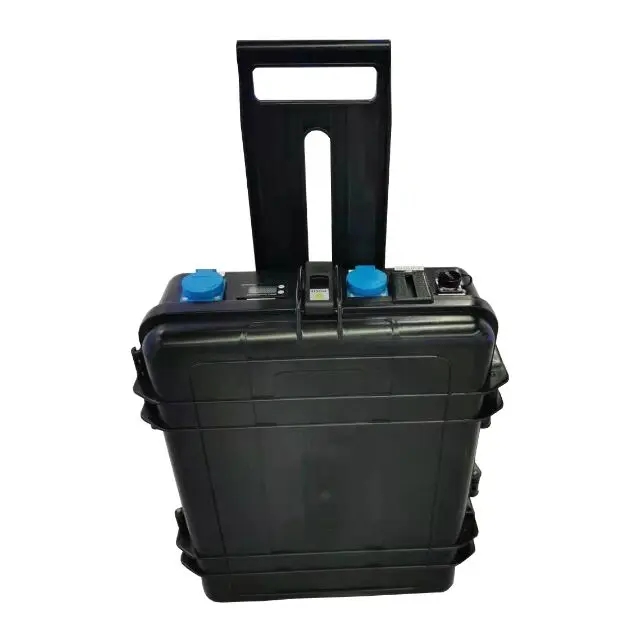

48V 105AH Portable Power Station LiFePO4 Generator

Product Detail

Technical Parameters

Battery TypeLiFePO4 Battery
Battery combination method1P15S
Battery nominal voltage(V)48
Battery nominal capacity(AH)105
Total battery power(KWH)5.04
Total weight of battery system(KG)40±2
Maximum continuous discharge current(A)105
Maximum continuous charge current(A)15
DC output voltage(V)5(USD)
DC output voltage(V)12(Cigarette lighter)
AV output voltage(V)110(nominal power 2000W)
AV output voltage(V)220(nominal power 2000W)
Battery system protection levelIP54
Battery system cycle life2000 times@25°C(1C/1C)
Size(MM)(632±10)*(474±5)*(188±5)
Working temperatureCharge: 0~55℃,Discharge: -20~60℃

Application

sad722

The characteristics of Lithium Iron Phosphate Battery and Lithium Ion Battery Li(NiCoMn)

 Features of lithium iron phosphate battery:

Lithium iron phosphate battery is a kind of using lithium iron phosphate (LiFePO4) as the anode material and graphite as the negative cathode material . The nominal voltage of the single unit is 3.2V, and the charging cut-off voltage is 3.6V~3.65V.

The biggest advantages of lithium Iron Phosphate battery is high safety performance and longer cycle life. Under standard charging conditions,the usage life can reach more than 5-10 years, the cycle life can be more than 2000 times.The ignition point of lithium iron phosphate is higher, autoignition temperature is 600℃,so not easy to burn, not easy to explode.

Features of Lithium Ion Battery Li(NiCoMn):

Lithium Ion Battery Li(NiCoMn): it uses three transition metal oxides of nickel, cobalt and manganese as anode material, and graphite as the negative cathode material. The nominal voltage of the single unit is 3.7V, and the charging cut-off voltage is 4.2V~4.25V.

The biggest advantages of Lithium Ion Battery Li(NiCoMn) is higher energy density and higher voltage flat.The cycle life can be more than 800 times.The ignition point can be lower than Lithium iron phosphate battery.So easy to burn, easy to explode.

Our Vision:

Committed to becoming a global leader in battery solutions for artificial intelligence and energy storage applications, building a creative lithium battery company, and being an excellent management team.

Our Social responsibility:

Advocate green energy, create a beautiful environment, and make life full of sunshine.
