Custom Lithium ion Battery Pack

300W Portable Power Station LiFePO4 Battery

Product Detail

Technical Parameters

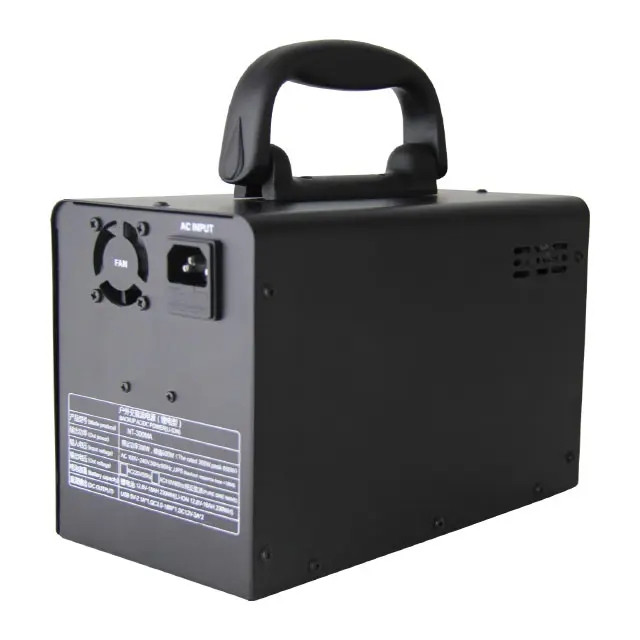

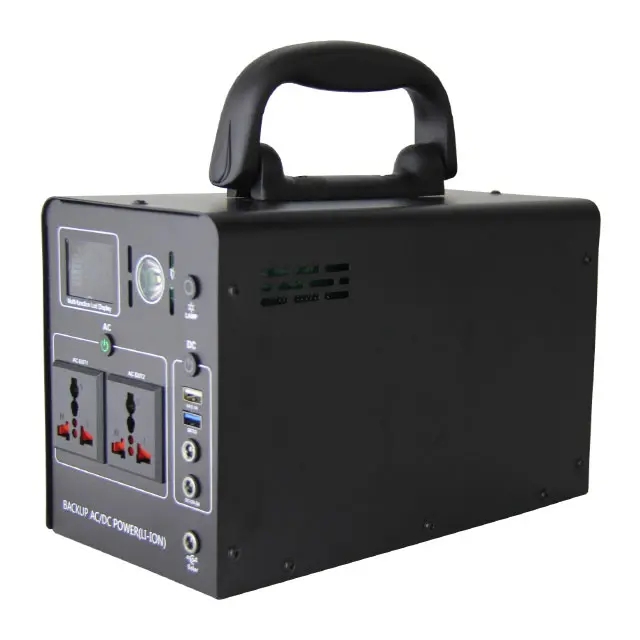

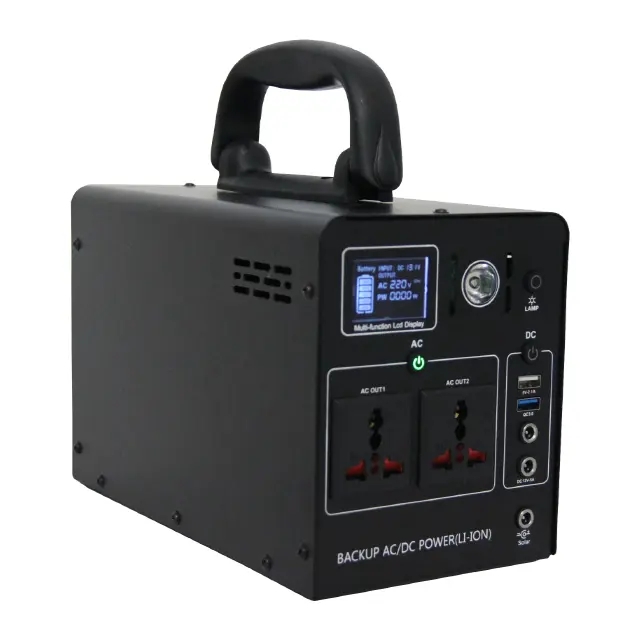

Portable Power Station 300W


Battery LiFePO4 12.8V-18AH (230WH)
USB outputUSB 5V-3A/USB QC3.0 fast charge
DC outputDC12V-3A(DC5.5-2.1 connector
LED lightHigh-power 1W white light, three-speed flashlight lighting (100%, 50%, flashing)
Solar panel chargingPV-18V-5A solar panel
 AC inputAC100V-240V,50/60Hz
UPS Smart power outage switch,time<10ms



AC output

Rated Power:300W
Continuous power:300W
Overload protection:>300W
Output Voltage:AC220V/110V
Voltage waveform: pure sine wave
Output frequency:50Hz
 ManagementStatus display: LCD liquid crystal display
Fault reminder: buzzer
Fan control: intelligent temperature control
 Work/SafeWorking Temperature:-10C°~60C°
Storage Temperature:-30C°~70C°
Relative humidity:5%~95%,No condensation
 PackageProduct Size:252*132*165mm
Package size:332*182*220mm
Net weight:4.0KG

Application

300w_lifepo4

The characteristics of Lithium Iron Phosphate Battery and Lithium Ion Battery Li(NiCoMn)

Features of lithium iron phosphate battery:

Lithium iron phosphate battery is a kind of using lithium iron phosphate (LiFePO4) as the anode material and graphite as the negative cathode material . The nominal voltage of the single unit is 3.2V, and the charging cut-off voltage is 3.6V~3.65V.

The biggest advantages of lithium Iron Phosphate battery is high safety performance and longer cycle life. Under standard charging conditions,the usage life can reach more than 5-10 years, the cycle life can be more than 2000 times.The ignition point of lithium iron phosphate is higher, autoignition temperature is 600℃,so not easy to burn, not easy to explode.

Features of Lithium Ion Battery Li(NiCoMn):

Lithium Ion Battery Li(NiCoMn): it uses three transition metal oxides of nickel, cobalt and manganese as anode material, and graphite as the negative cathode material. The nominal voltage of the single unit is 3.7V, and the charging cut-off voltage is 4.2V~4.25V.

The biggest advantages of Lithium Ion Battery Li(NiCoMn) is higher energy density and higher voltage flat.The cycle life can be more than 800 times.The ignition point can be lower than Lithium iron phosphate battery.So easy to burn, easy to explode.

Our Vision:

Committed to becoming a global leader in battery solutions for artificial intelligence and energy storage applications, building a creative lithium battery company, and being an excellent management team.

Our Social responsibility:

Advocate green energy, create a beautiful environment, and make life full of sunshine.

300w_lifepo4_2


*
*
