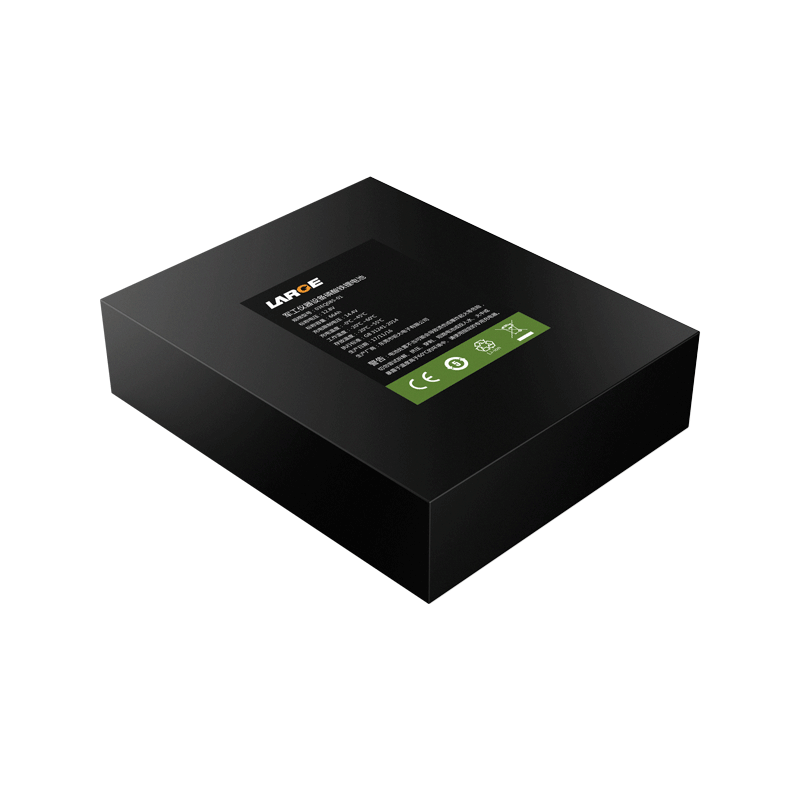

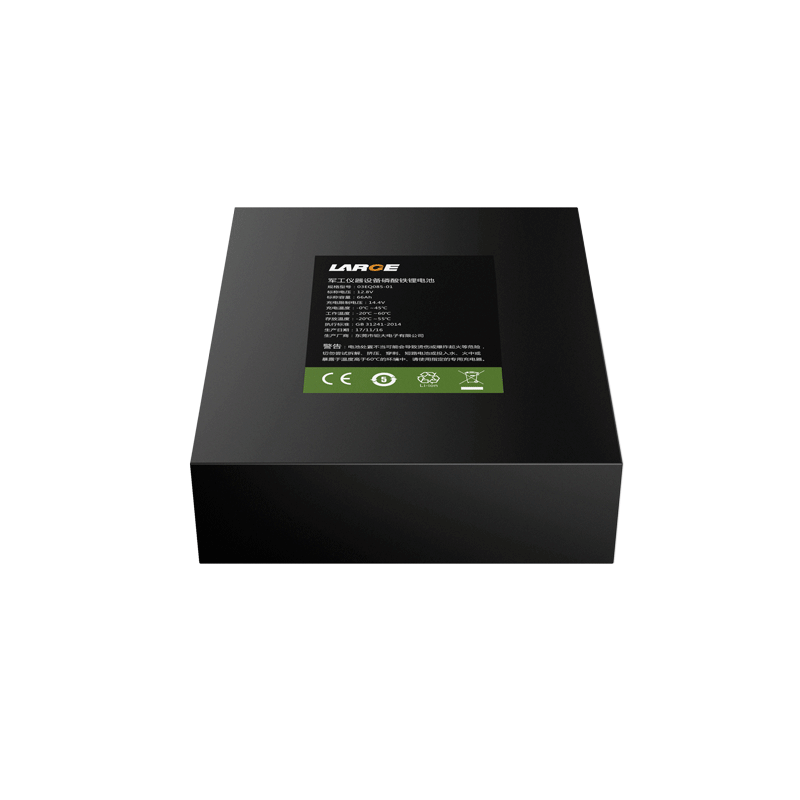

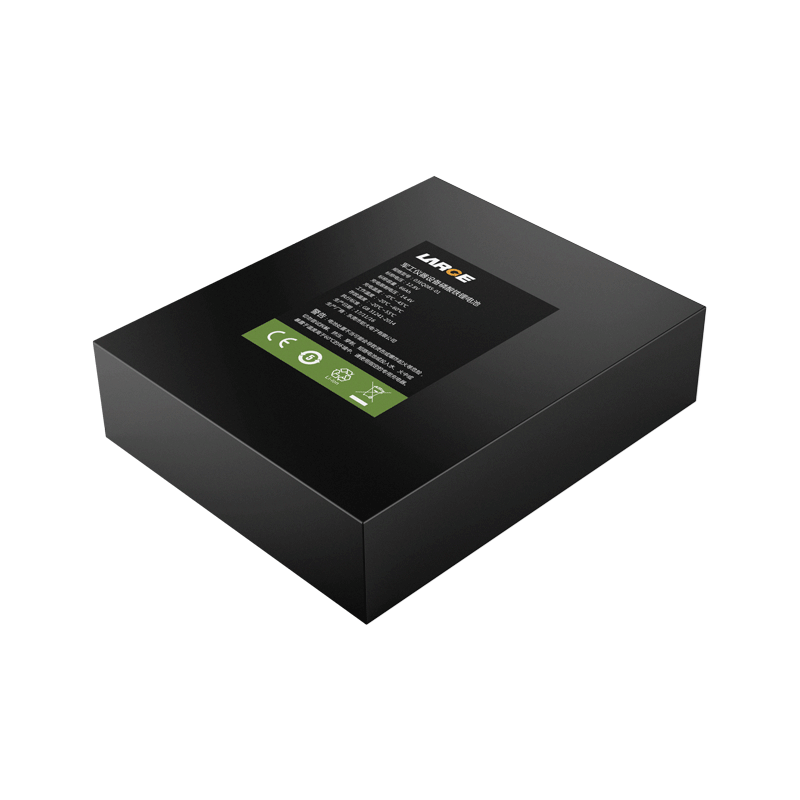

12V 60Ah 26650 LiFePO4 Battery with RS485 Communication for Special Instrument

Product number: 03EQ085-01

Cell model: 26650/3.2V/3300mAh

Battery specification: 26650-4S20P/12V/60Ah

Nominal voltage: 12.8V

Nominal capacity: 66Ah

Charging voltage: 14.4V

Charging current: ≤20A

Discharge current: 10A

Instantaneous discharge current: 50A

Discharge cut-off voltage: 10V

Finished product internal resistance: 200 mΩ or less

Battery weight: 7.5kg

Product dimension: 300*245*75mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 ~ 60 ℃

Temperature protection: 65℃±5℃

Battery case: PVC grade

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, 485 communication, etc.

Application: industrial machinery and equipment, special military weapons, military equipment and instruments, etc.

Product features

1.Communication function: LCD displays voltage and quantity, which makes easily display quantity;

2.Wire output terminal: Adopt wiring output interface to increase the conductivity reliability;

3.Data communication management: It adopts seiko IC+TI charger management chip, precise data transmission and accurate temperature control to eliminate security risks to the greatest extent.

4.Battery pack has good safety, low temperature performance and long cycle life;

5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
